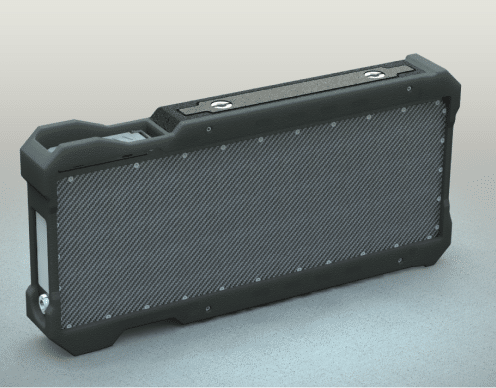

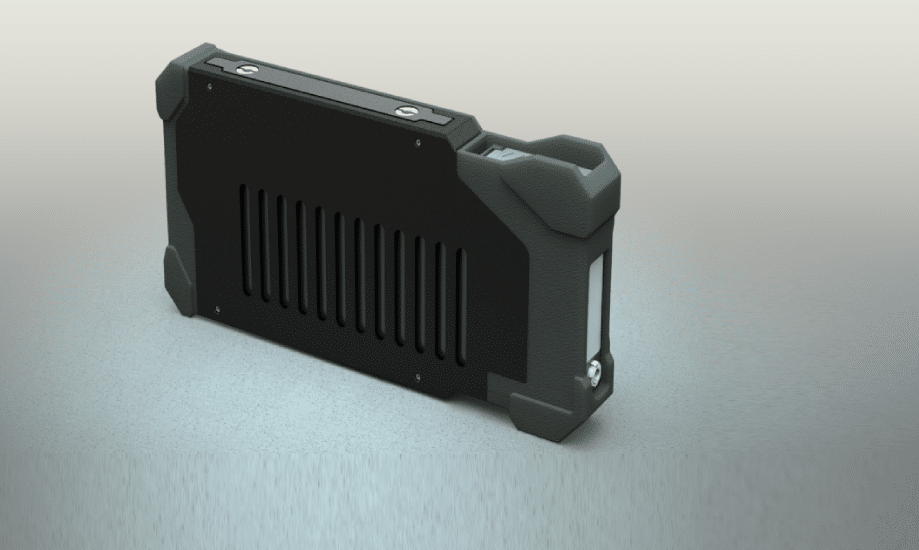

PiX Pikena HD is our lightest, smallest and highest resolution imaging solution. This unique imaging system comes complete with our advanced rugged armor designed for portable use. Inspired by mobile case dedicated to protect your technology from harsh environments, our case is quick to mount and adds substantial protection to the detector’s IP67 rating. With a scanning resolution of 76 microns and a weight of 2.7 lbs (minus armor), the system allows the ability to image in tighter spots & improved accessibility during CUI (Corrosion Under Insulation) inspection.

      Slide

      PiX Pikena HD allows Multi Frame Capture (MFC) and advanced software averaging to reduce the noise and improve Signal to Noise Ratio (SNR). It has shown tremendous results while imaging Aerospace parts as well as during Pipeline integrity inspection (clearly identify corrosion, erosion, shrinkage cracks, measure wall thickness etc).

      PiX Software with its “SINGLE CLICK CAPTURE" process makes acquiring images very easy. When you launch the software, detector and x-ray are auto-connected. Just press "READY" & image is acquired within a few seconds & wirelessly transferred on the tablet (or laptop) for immediate review and analysis.
      PiX Pikena HD allows Multi Frame Capture (MFC) and advanced software averaging to reduce the noise and improve Signal to Noise Ratio (SNR). It has shown tremendous results while imaging Aerospace parts as well as during Pipeline integrity inspection (clearly identify corrosion, erosion, shrinkage cracks, measure wall thickness etc).
      PiX Software with its “SINGLE CLICK CAPTURE” process makes acquiring images very easy. When you launch the software, detector and x-ray are
      auto-connected. Just press “READY” & image is acquired within a few seconds & wirelessly transferred on the tablet (or laptop) for immediate review and analysis.

      Image library

      Advantages

      Vector 5
      Lowest Radiation Possible
      Vector 5
      U.S. Based Customer Support
      Vector 5
      Plug & Play Solution
      Vector 5
      Single Click Image
      Vector 5
      Full-field AED & Trigger Mode
      Vector 5
      Rugged Rhino protective Armor
      Vector 5
      Low Power Consumption
      Vector 5
      High Sensitivity Mode
      Vector 5
      High Sensitivity Mode
      Vector 5
      Suite Of NDT Tools (including Smart Stitching)

      Where to Use

      Vector 5
      New Weld Construction
      Vector 5
      Electronics Inspection
      Vector 5
      Aerospace Applications (HD use)
      Vector 5
      Boiler Pipelines
      Vector 5
      Orbital Weld Inspection
      Vector 5
      Pipeline Integrity Inspection

      Main Benefits

      Vector 5
      Detects corrosion (Internal & External)
      Vector 5
      Detects erosion (Internal)
      Vector 5
      Measure pipe wall thickness
      Vector 5
      Analyze weld quality
      Vector 5
      Physical Damage Assessment

      PI Software Features

      Zoom, Pan, Rotate, Flip Image Storage, Import/Export, Diconde
      Text, Shapes, Distances, Areas Line Profile, Duplex Wire
      Invert, Window/Level, Histogram Smart Stitching
      Crop, Mask, ROI, Overlay ROI Statistics, SNR, CNR
      Best fit, 1:1 Display, Split Display Image Processing, Flitters, Embossing, Pseudocolor
      Undo, Redo, Reset, Presentation State Image Database Management System
      Configurable UI, Multi-Language Report Writer
      Info for Part and Study,  Overlay User Loggins, Roles
