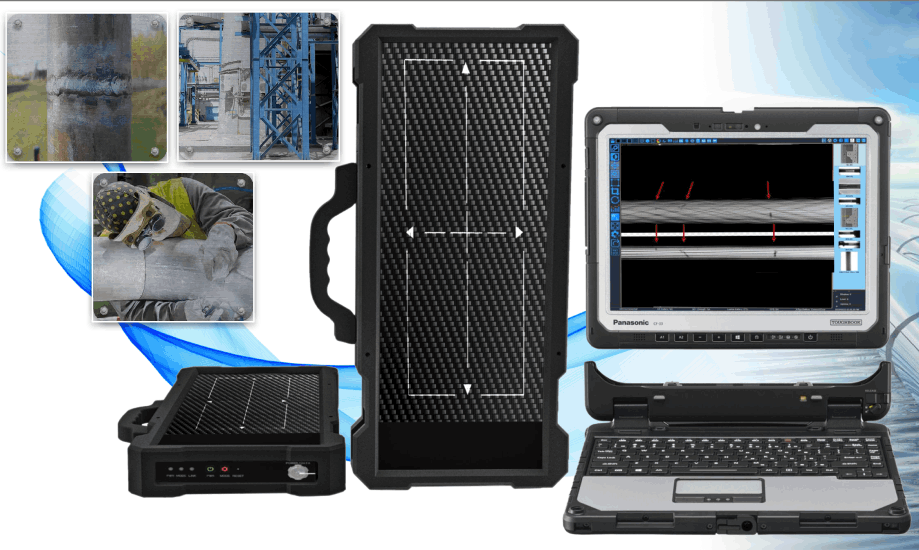

PiX 411 Solution is a light weight, rugged film size detector. Its unique size and thin profile allows you to image in tight spots. PiX 411 comes complete with our advanced protective armor with precision design ideal for portable use. Inspired by mobile case technology dedicated to protecting the detector from harsh environments, our case is quick to mount and adds substantial protection to the IP65 rated detector.
PiX 411 will provide you versatility and accessibility during CUI (Corrosion Under Insulation) inspection as well as Pipeline integrity inspection (clearly identify corrosion, erosion, shrinkage cracks, measure wall thickness etc). Its adjustable frame rate allows high resolution imaging in the Oil and Gas industry as well as Power line inspection.
Pacific NDT specializes in providing high quality x-ray imaging solutions for industrial and security use. Our software is available in English, Spanish, Portuguese, German & Chinese. Local language software is available upon request.
PiX Software with its “SINGLE CLICK” process makes acquiring images very easy. When you launch the software, the detector and x-ray are auto-connected. Just press “READY” & image is acquired within a few seconds & wirelessly transferred on the tablet (or laptop) for immediate review and analysis.
Pacific NDT specializes in providing high quality x-ray imaging solutions for industrial and security use. We are based in the beautiful Pacific Northwest (Seattle, WA) and all of our designs, assembly & manufacturing is done in the USA. We have a range of Computed Radiography (CR) and Digital Radiography (DR) products powered by PiX (acquisition software). Our software is available in English, Spanish, Portuguese, German & Chinese. Local language software is available upon request.
Image library
US Based Manufacturer focused on high quality
Global install base
DICONDE compliant SW.
Single SW controls 12 hardware solutions (CR, DR & CT)
Free on-site demos and training.
Solutions range from 15 to 200 µm pixel pitch.
Static, Dynamic & Real time solutions available.
Trustworthy & reliable customer support
Complete engineering & design performed in the U.S.
Proven performance in 19 countries and counting
New Weld Construction
Steel and Carbon Steel Pipes (2”- 24”)
Boiler Pipelines
Orbital Weld Inspection
Pipeline Integrity Inspection
High energy range
Ingress protection
Drop tested
Technical Specifications
| Product Model | a-Si |
| Active Area (mm) | 97.6 x 292.6 |
| Dimensions (mm) | 160 x 499 x 31 (w/out armor case & handle) |
| Weight (Kg/Lbs) -w/out armor case | 2.8 (6.2 lbs) (w/battery, w/out armor case & handle) |
| Conversion Screen | Csl/GOS |
| Pixel Pitch (µm) | 127 |
| AD Conversion (bit) | 16 |
| X-Ray Energy Range (kVp) | 40-330 kV, Ir-192, Co-60, Se-75 |
| Frame Rate (fps) | 1-6 (@ semi-dynamic mode) |
| Min. Border (mm) | 21.5 |
