Pacific NDT specializes in providing customized solutions for NDT and Security Imaging. Our systems are rugged, portable, easy to use and service
Pacific NDT specializes in high quality x-ray imaging solutions for industrial and security use. Headquartered in the Pacific
Northwest (Seattle, WA), we take pride in delivering quality products assembled & manufactured in the USA. With over 15
years experience the optimization of CR for industrial and security applications, Pacific NDT will guide you to an imaging
solution that will exceed the demands of the harshest non-destructive testing environments.

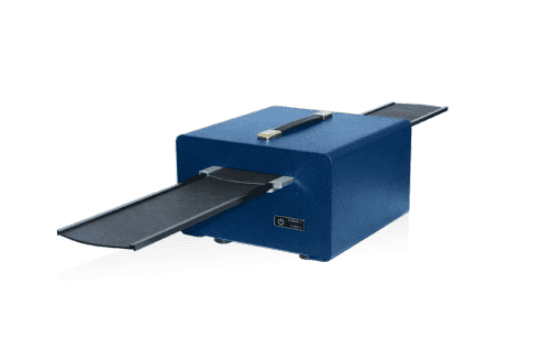

Slide We offer a range of Computed Radiography (CR) solutions powered by our Acquisition Software (PiX). The PiX Software is built around a “SINGLE CLICK" workflow ensuring an ultra- efficient approach to acquiring images. Simply launch your PiX Software and insert the imaging plate provided into the CR scanner and press “ACQUIRE”. The imaging plate will scan within a few seconds and transfer the digitized image to our Ruggedized Tablet for instant review and analysis. Our CR systems and PiX Software ecosystem cover a wide range of applications including Aerospace, Oil & Gas, Powerline, Pipeline Integrity, Concrete, Security, Automotive, Battery Inspection etc.

The PiX Software is available in English, Spanish, Portuguese, German & Chinese. Local language software is available upon request. To learn more, review the backside of this brochure to see our CR offerings.
We offer a range of Computed Radiography (CR) solutions powered by our Acquisition Software (PiX). The PiX Software is built around a “SINGLE CLICK” workflow ensuring an ultra- efficient approach to acquiring images. Simply launch your PiX Software and insert the imaging plate provided into the CR scanner and press “ACQUIRE”. The imaging plate will scan within a few seconds and transfer the digitized image to our Ruggedized Tablet for instant review and analysis. Our CR
systems and PiX Software ecosystem cover a wide range of applications including Aerospace, Oil & Gas, Powerline, Pipeline Integrity, Concrete, Security, Automotive, Battery Inspection etc.
The PiX Software is available in English, Spanish, Portuguese, German & Chinese. Local language software is available upon request. To learn more, review the backside of this brochure to see our CR offerings.
COMPUTED RADIOGRAPHY
US based manufacturer focused on high quality and service
COMPUTED RADIOGRAPHY
Global install base.
COMPUTED RADIOGRAPHY
DICONDE compliant SW
COMPUTED RADIOGRAPHY
Single SW controls 12 different hardware solutions (CR, DR & CT).
COMPUTED RADIOGRAPHY
Free on-site demos (when possible) and post sales installation and training.

COMPUTED RADIOGRAPHY
Viewing Tools
COMPUTED RADIOGRAPHY
Measurement Tools
COMPUTED RADIOGRAPHY
Post processing Filters
COMPUTED RADIOGRAPHY
Specialized Modules
COMPUTED RADIOGRAPHY
Report Writers
COMPUTED RADIOGRAPHY
Processing algorithms for different industries etc.
COMPUTED RADIOGRAPHY
Solutions ranging from 15 microns to 200 microns pixel pitch.
COMPUTED RADIOGRAPHY
Static, Dynamic and Real time solutions available.
COMPUTED RADIOGRAPHY
Trustworthy & reliable customer support.
COMPUTED RADIOGRAPHY
Complete engineering and design done in US.
COMPUTED RADIOGRAPHY
Proven performance in 19 countries and counting.

SPECIFICATIONS

Grayscale Resolution 16 bits/pixel source file, 65536 shades of gray
Pixel Pitch 25, 50, 100, 150, 200
Scanning Process True Flat Scan Path, Magnetic Drive Belt
Weight 56 lbs (25.4 kg)
Dimensions W18” x D27″ x H7.625”
Throughput 76 IP plates per hour (4.5 x 10)
Feed Mechanism Flatbed Hard Cassette and Flexible Cassette Option
Material Size 14″ x 17″ (35 X 43 cm), 10″ x 12″ (25 X 30 cm)
Power Source 100-240V AC/ 2.5A max; 47-63Hz (Universal power supply)
Interface USB 2.0
Heat Generation Standby 230W, maximum 1610W
Operating Conditions Temperature; 0-40°C/32-105°F, temperature change: 0.5°C/min, humidity: 15%-95% RH, magnetic fields: max 1260 µT (in conformance with EN 61000-4-8: level 3), 10 A/m
Light / Sensor Diode / PMT
Erase Method Automatic, LED
Network DICONDE Compliant
Operating System Windows 7, 8, 10 – 64-Bit

Pacific NDT Concrete Inspection System

Description

RT-PI-CONCRETE

Part #

budget 1

Request Quote
