Cabinet Based X-Ray Solutions

Pacific NDT is excited to introduce its stationary cabinet based X-Ray solutions along with its field proven successful portable imaging systems.

Critical Features

  • Smallest form factor
  • Highest pixel pitch Detector
  • Small Focal spot x-ray for extreme sharpness
  • Adjustable SID
  • Radiation control using non-lead technology.
  • High penetration power
  • Robust design
  • Large battery capacity (runs with Mains also
  • Designed for optimal cooling characteristics
  • Safety Physical safety interlock with key
  • Audible and visible warning signs
  • Designed, Assembled and shipped from USA

X-Ray Solutions | Image library

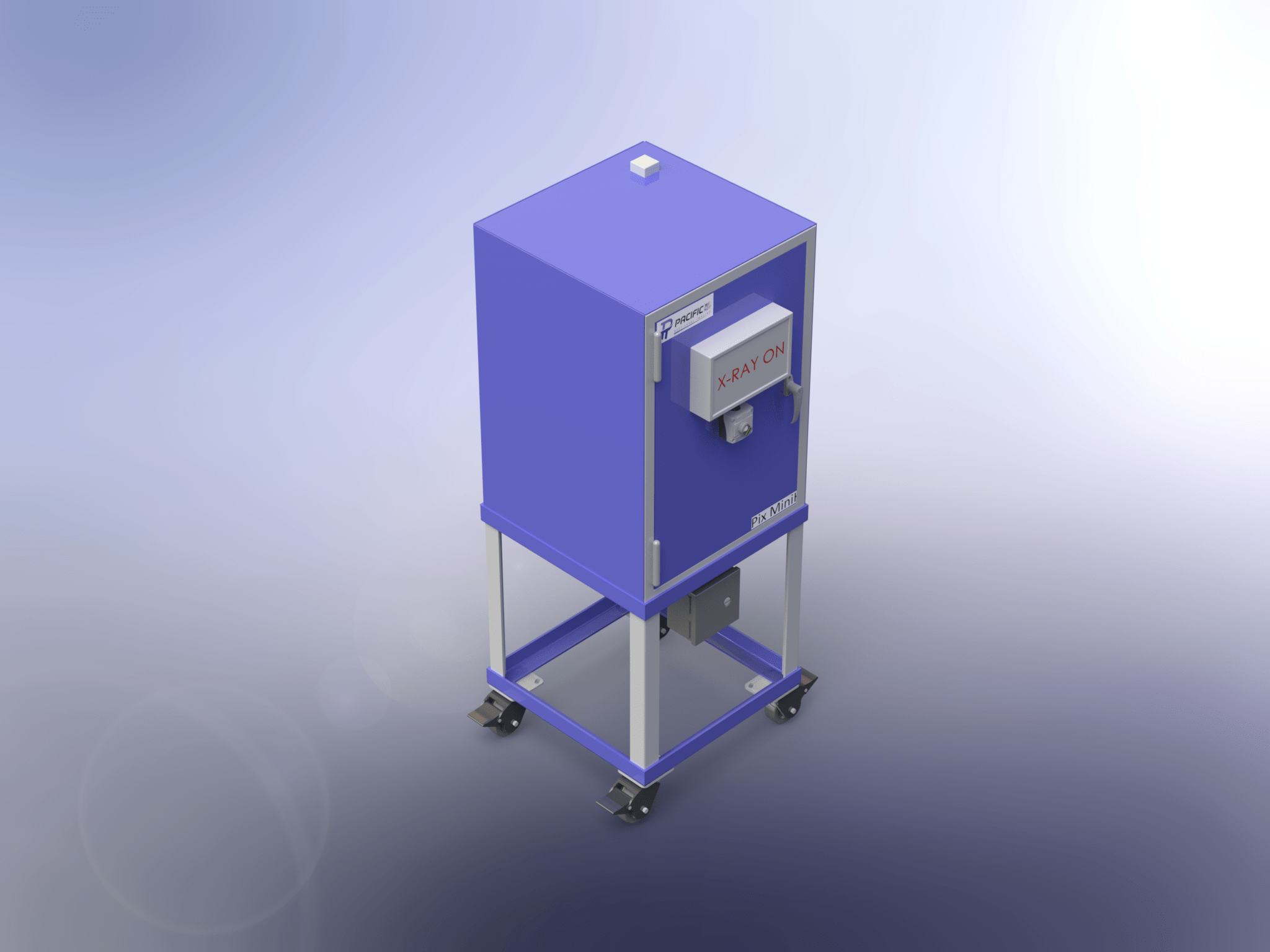

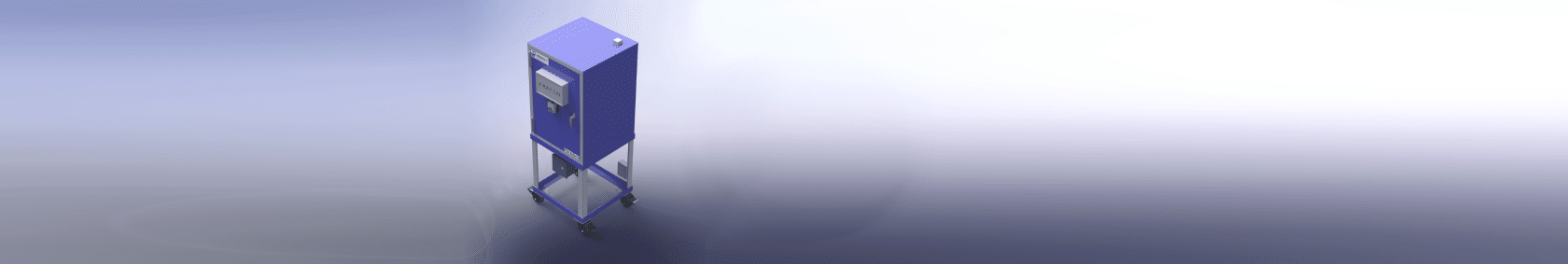

PiX Mini HD (Aerospace)
Technology – a-Si TFT with Photodiode
PiX Mini HD (Aerospace)
Imaging Area (mm & inch) – 233x97mm (3.8”x9.1”)
PiX Mini HD (Aerospace)
Pixel Matrix – 3072 x 1280
PiX Mini HD (Aerospace)
Pixel Pitch (μm) – 76μm (Binning 152 μm)
PiX Mini HD (Aerospace)
A/D Conversion – 16-bit
PiX Mini HD (Aerospace)
Operating Temperature (°C/°F) – 0-45°C (32-113°F)
PiX Mini HD (Aerospace)
Data Interface – 1G Ethernet /Wi-Fi 802.11 n/ac
PiX Mini HD (Aerospace)
Ingress Protection – IP67
PiX Mini HD (Aerospace)
Multiframe Capture – Yes (up to 20 frames)
PiX Mini HD (Aerospace)
Waveform – Constant Potential
PiX Mini HD (Aerospace)
Output Range – 40 kV to 160 kV
PiX Mini HD (Aerospace)
Output Current – 0.1 mA to 1.0 mA
PiX Mini HD (Aerospace)
Maximum Power at Anode – 160 W
PiX Mini HD (Aerospace)
Focal Spot Size – 0.4 mm
PiX Mini HD (Aerospace)
Beam Angle – Cone Beam (40°)
PiX Mini HD (Aerospace)
Communication Protocols – Wireless 802.11 2.4 GHz and Wired TCP/IP Ethernet
PiX Mini HD (Aerospace)
Steel Penetration – 16-18 mm (160 kV, 0.5 mA, 7.5 sec)
PiX Mini HD (Aerospace)
Operating Temperature – -3°F to 122°F (-10°C to 50°C)
PiX Mini HD (Aerospace)
Physical Damage Assessment

PI Software Features

Controls X-Ray from Software (adjust mA, kV, duration) Report Writer, Image Profiler & lots more
Control multiple X-Ray systems (pulse and constant potential) Multiple Language Support
Control digital detectors of different sizes and resolution Friendly & customizable User Interface
Multi-frame image capture Assisted Defect Recognition (add on feature)
Image Averaging Smart Stitching (add on feature)
Image Measurement Tools Custom Software Feature Additions
Image Annotation Tools Automatic Pipe Wall thickness measurement (add on feature)
Advanced Image Filters (SNR, CLAHE, Edge, Emboss, Sharpen etc) Image Calibration & Bad Pixel Map Correction
Fully Diconde Compliant Immediate Image Sharing (jpg, png, dcm, dcn, tiff formats)
Cloud Image Viewer SW (add on feature) Standard SW warranty and support contract with every license

* We specialize in customization. We always request samples from client before determining what X-Ray or Detector will work best for the desired application. Choose from over a dozen options controlled using our reliable SW. Specs in the brochure can change depending on the requirement.
