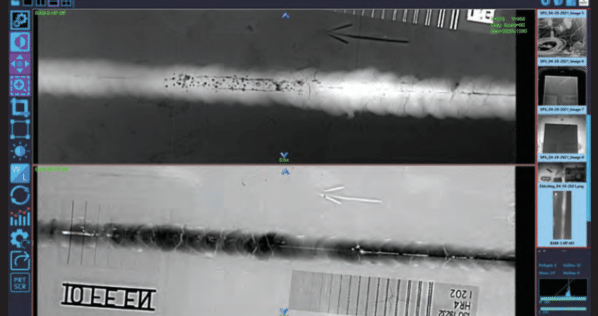

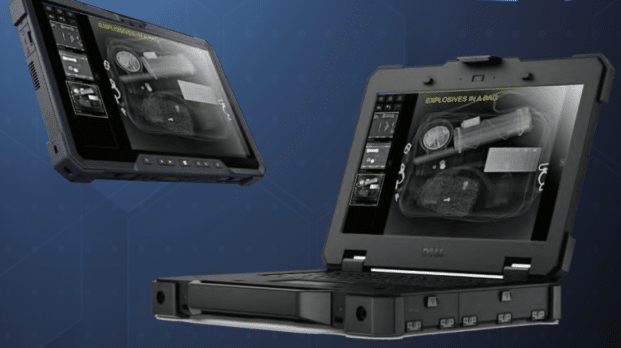

Desktop based Image Viewer. PiX software has been tailored specifically for industrial applications and complies with DICONDE standards. The software utilizes clearly laid out icons allowing you to view, modify, adjust images & lots more.
Software can be easily installed on a 64 bit OS and can open images of any size (even >250 MB per image). It allows you to categorize images into different folders.
PiX viewer allows you to easily transfer data from acquisition software and can be used to organize your image database as well as generating automated reports.

Image library

PiX Software delivers a complete solution for industries like: Pipeline Inspection, Aerospace, Concrete, Security, Powerline/Utility, Transmission & other Industrial facilities. It has a complete range of SW features categorized in to following:
a. Viewing Tools
b. Measurement Tools
c. Post processing Filters
d. Specialized Modules (report writer, specialized image
processing algorithms for different industries etc).
Pacific NDT specializes in providing cutting edge imaging solutions for pipeline integrity inspection. Our plug and play system allows you to capture images in a matter of seconds. Our Software is designed specifically for optimizing erosion, corrosion, pits and providing automatic wall thickness measurements up to 3 decimal places. Some of the highlights of our SW includes te following:

1.Image QA & Optimization

• Multi-energy fusion: insulated pipe imaging
• WeldX: pipe enhancement
• Virtual Grid: suppress scattering
• Super Resolution: improve spatial resolution
• Low Dose Restoration: low dose image restoration & enhancement
Image 1a. - Assisted Defect Recognition
Image 1a. - Assisted Defect Recognition
Image 1c.- WeldX Pipe Enhancement applied
Image 1c.- WeldX Pipe Enhancement applied
Image 1b.- Super Resolution applied image
Image 1b.- Super Resolution applied image
Image 1d. - WeldX Pipe Enhancement applied (invert)
Image 1d. - WeldX Pipe Enhancement applied (invert)

2.Analysis and Measurement

Measurement:
• Weld reinforcement measurement based on ring test block
• Pipe wall thickness auto-measurement
• Pipe diameter auto-measurement
• Pipe wall and base material thickness measurement based on gray scale line profile.
Calibration:
• Metal ball auto-measurement and length calibration
• Calibration based on the size of detector FOV
• Calibration based on pipe diameter

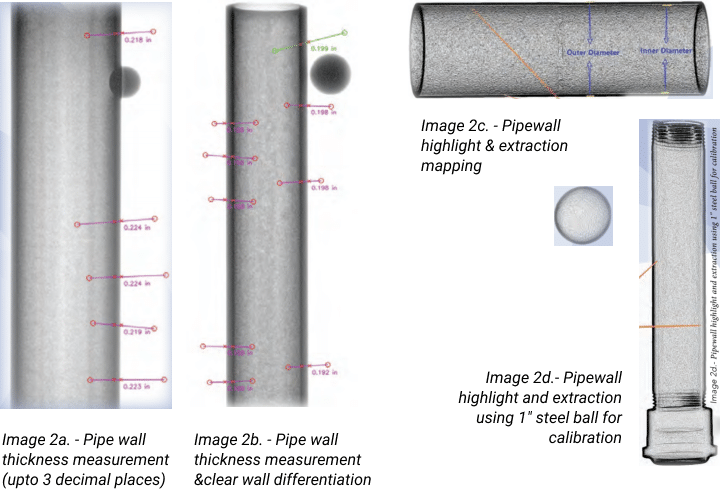

Image 2e.- Plot grayscale profile anywhere in the image
Image 2e.- Plot grayscale profile anywhere in the image

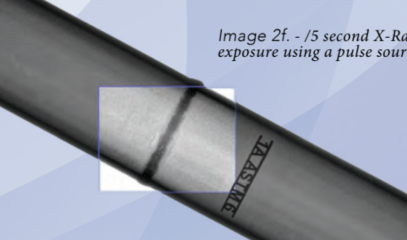

Image 2f. - /5 second X-Ray exposure using a pulse source
Image 2f. - /5 second X-Ray exposure using a pulse source

3.ADR (Assisted Defect Recognition)

• Erosion and Corrosion defect auto-positioning and recognition
• Defect auto-measurement
• Defect auto-classifying and rating
Image 3a. - Assisted defect recognition, classification & rating
Image 3a. - Assisted defect recognition, classification & rating
