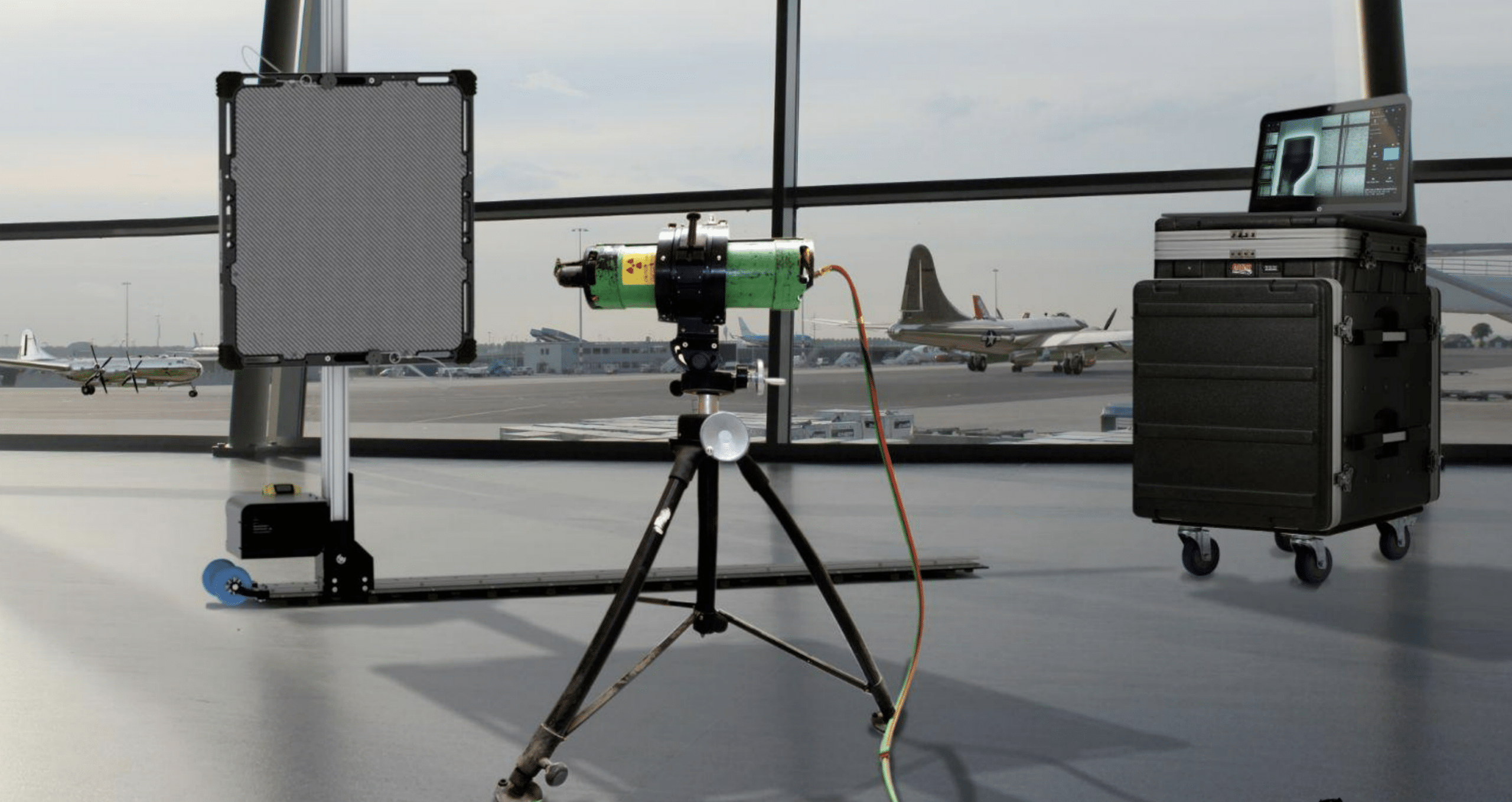

The MosaiX Imaging Solution is tailor made for large part inspection. MosaiX provides you a imaging area of 42″ x 51″ captured in minutes and the length of your imaging area can be extended using our sliding module attachments.
      In addition to the X-ray of wings, the MosaiX solution is ideal for rotors, blades or large part automotive inspection, etc. MosaiX ensures flexible mounting solutions for multiple detectors with varying resolution, yielding the most efficient X-ray capture solution available.

      Slide Our Smart-Stitching feature, embedded in our software, captures MosaiX high resolution images and builds them precisely into large areas scans to ensure accuracy and integrity. Defects, as small as 25-50 microns, can be seen using our high definition detectors in sync with our small focal spot constant potential portable x-ray units making the MosaiX Imaging Solution the ideal choice for this industrial imaging discipline.
      Our Smart-Stitching feature, embedded in our software, captures MosaiX high resolution images and builds them precisely into large areas scans to ensure accuracy and integrity. Defects, as small as 25-50 microns, can be seen using our high definition detectors in sync with our small focal spot constant potential portable x-ray units making the MosaiX Imaging Solution the ideal choice for this industrial imaging discipline.

      Image library

      Advantages

      Vector 5
      Lowest Radiation Possible
      Vector 5
      U.S. Based Customer Support
      Vector 5
      Plug & Play Solution
      Vector 5
      Single Click Image
      Vector 5
      Full-field AED & Trigger Mode
      Vector 5
      Rugged Rhino protective Armor
      Vector 5
      Low Power Consumption
      Vector 5
      High Sensitivity Mode
      Vector 5
      High Sensitivity Mode
      Vector 5
      Suite Of NDT Tools (including Smart Stitching)

      Where to Use

      Vector 5
      Wings
      Vector 5
      Motor
      Vector 5
      Infrastructure
      Vector 5
      Propeller

      Main Benefits

      Vector 5
      Detects cracks (Internal & External)
      Vector 5
      Measure porosity
      Vector 5
      Analyze weld quality
      Vector 5
      Physical Damage Assessment

      PI Software Features

      Zoom, Pan, Rotate, Flip Image Storage, Import/Export, Diconde
      Text, Shapes, Distances, Areas Line Profile, Duplex Wire
      Invert, Window/Level, Histogram Smart Stitching
      Crop, Mask, ROI, Overlay ROI Statistics, SNR, CNR
      Best fit, 1:1 Display, Split Display Image Processing, Flitters, Embossing, Pseudocolor
      Undo, Redo, Reset, Presentation State Image Database Management System
      Configurable UI, Multi-Language Report Writer
      Info for Part and Study,  Overlay User Loggins, Roles

      Pacific NDT Concrete Inspection System

      Description

      RT-PI-CONCRETE

      Part #
