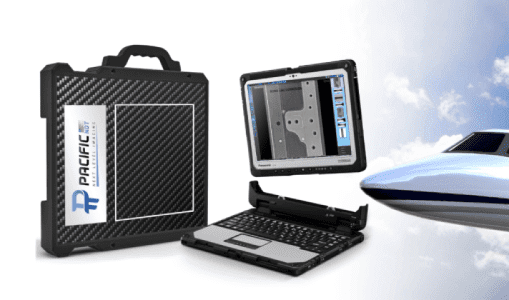

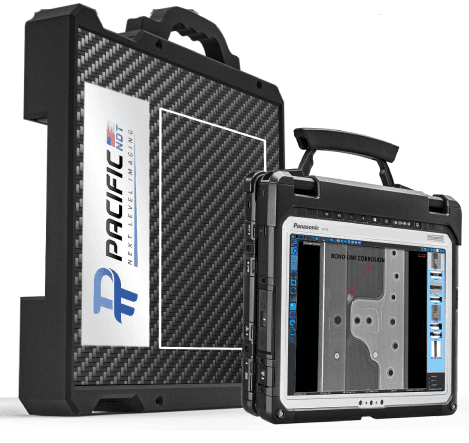

PiX 0506 NDT is state-of-the-art, solid-state CMOS detector for dynamic imaging. The 5×6 inch CMOS sensor provides a dynamic range up to 72 dB, and supports programmable gain and read-out modes. It enables high speed imaging up to 18 fps with excellent sensitivity. The PiX 0506 NDT is suited for industrial NDT applications including aerospace imaging, BLC (Bond line corrosion detection), micro focus inspection etc.
Pacific NDT specializes in providing high quality x-ray imaging solutions for industrial and security use. We are based in the beautiful Pacific Northwest (Seattle, WA) and all of our designs, assembly & manufacturing is done in the USA. We have a range of Computed Radiography (CR) and Digital Radiography (DR) products powered by PiX (acquisition software).
Our digital detectors cover a wide range of applications including Aerospace, Oil & Gas,
Powerline, Pipeline Integrity, Concrete, Security, Automotive, Battery Inspection etc.
Our company mission is to have successful installations in as many countries as possible
while ensuring excellent post sales service.
Our digital detectors cover a wide range of applications including Aerospace, Oil & Gas, Powerline, Pipeline Integrity, Concrete, Security, Automotive, Battery Inspection etc. Our company mission is to have successful installations in as many countries as possible while ensuring excellent post sales service. Our software is available in English, Spanish, Portuguese, German & Chinese. Local language software is available upon request. Please see page 2 to review the technical specifications of the product.
PiX 0506HD
US Based Manufacturer focused on high quality.
PiX 0506HD
Global install base.
PiX 0506HD
DICONDE compliant SW.
PiX 0506HD
Single SW controls 12 hardware solutions (CR, DR & CT).
PiX 0506HD
Free on-site demos and training.
PiX 0506HD
Solutions range from 15 to 200 µm pixel pitch.
PiX 0506HD
Static, Dynamic & Real time solutions available
PiX 0506HD
Trustworthy & reliable customer support.
PiX 0506HD
Complete engineering & design performed in the U.S
PiX 0506HD
Proven performance in 19 countries and counting.
PiX 0506HD
Aerospace imaging
PiX 0506HD
BLC (bondline corrosion)
PiX 0506HD
Microfocus inspection
PiX 0506HD
50 µm pixel pitch with 16-bit ADC
PiX 0506HD
CMOS detector technology
PiX 0506HD
4.6 x 5.6 inch imaging area
PiX 0506HD
Gigabit Ethernet interface, without image loss
PiX 0506HD
Fast speed, high throughput
PiX 0506HD
IP65 ingress protection
PiX 0506HD
“Plug and Play” Software

Technical Specifications

Detector Technology CMOS
Scintillator Csl
Pixel Pitch (µm) 50
Pixel Matrix 2330 X 2874
Active Area (mm) 116.5 X 143.7
Spatial Resolution (Ip/mm) 10
AD Conversion (bit) 16
Frame Rate (fps) 9 (1×1)
18 (2×2)
Data Interface Ethernet
Trigger Mode Continuous and Pulsed
X-ray Energy Range 40 -160kV /320 kV
Radiation Hardness (Gy) 10000
Ingress Protection IP65
Dimensions (mm) 240 X 154 x29
Weight (kg /lb) 3.7kg / 8.1lbs
Power Dissipation (W) <10
Operating Temperature (°C / °F) 10°C – 40°C / 50°F – 104°F
Storage & Transport Temperature with Package (°C / °F) -10°C – 55°C / 14°F – 131°F
Operating Humidity (% RH) 20 – 90
Storage & Transport Humidity with Package (% RH) 10 – 95
