PiX 1012HD
The PiX Security Solution from Pacific NDT is designed with a complete focus on the end-user.
Every component has a snap-on fit for quick and definitive use in a high-pressure environment. The system carries certifications such as Military Standard 810G, 461G for usage in low and high temperature, vibration, and altitude, and is backed by Pacific’s ISO 9001:2015 approved quality management system.

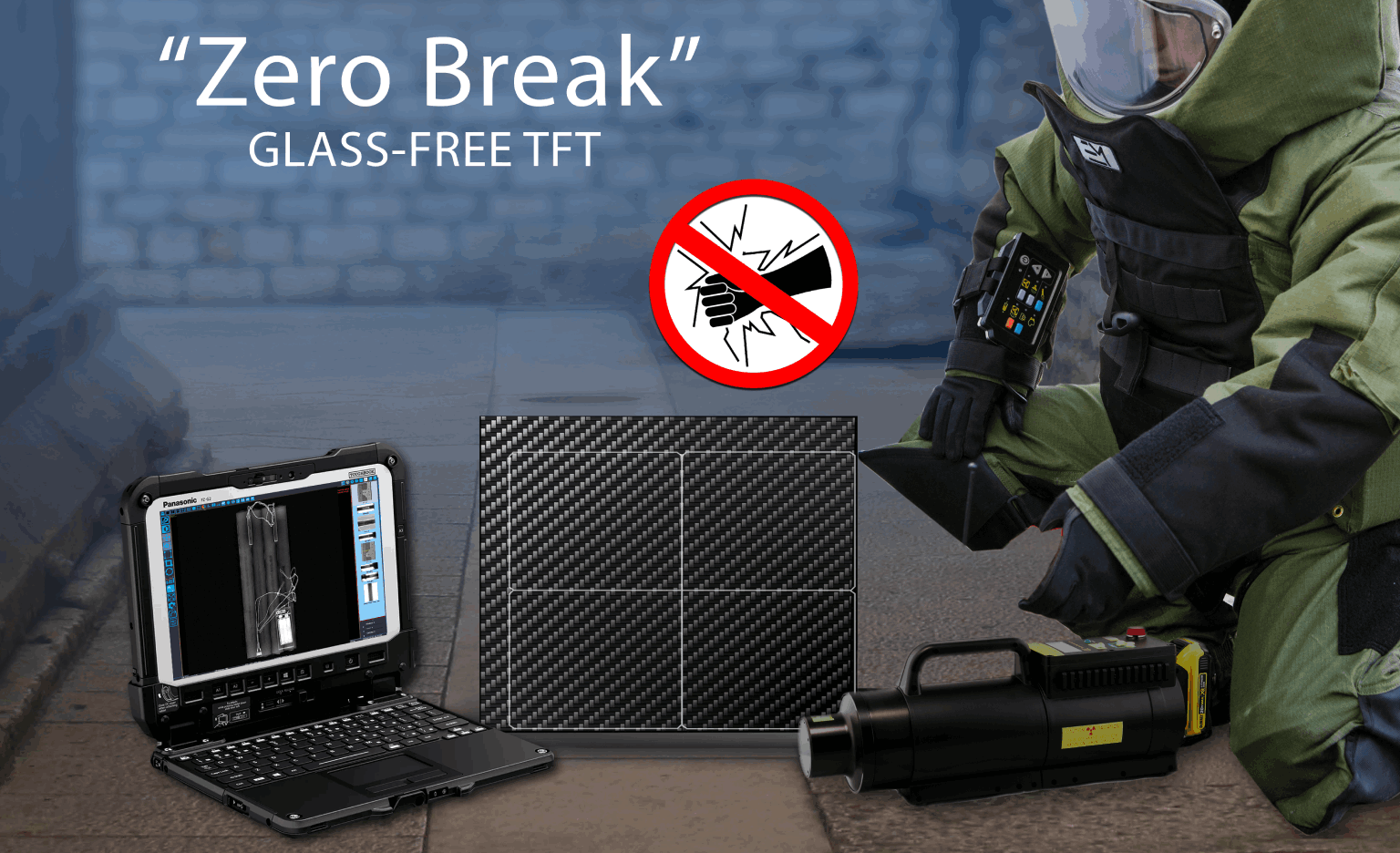

The PiX Security Solution comes in a portable & rugged pelican case on wheels with custom foam (also available in a backpack solution). The imaging unit consists of an IP67 rated DR with the lowest edge space in the market, a rugged IP65 PC/Tablet, PiX Security Software, PiX Gold 3.0 Control Box, Dual Energy Module (2.0), Golden XRS source & other accessories (bipod stand, tripod stand, etc).
Product Details
The PiX Security Solution operates with a built-in battery and has both tethered & wireless modes. Our system enables you to capture and display an image in a matter of seconds, allowing you to make rapid decisions under high pressure situations.
Pacific NDT specializes in providing high quality x-ray imaging solutions for industrial and security use. We are based in the beautiful Pacific Northwest (Seattle, WA) and all of our designs, assembly & manufacturing is done in the USA. We have a range of Computed Radiography (CR) and Digital Radiography (DR) products powered by PiX (acquisition software)
Product Information
Water- and dust-resistant
High-resolution X-Ray images
directly to your laptop.
Includes a durable and
portable case or backpack.
We offer ️fall protection
guarantees
Video instructions
included
Manufacturing is in the USA
The carbon fiber
covers are tough
Damage resistant
Completely wireless system
Pix 1012HD
Image library
Not sure what fits to your needs?
Speak with our expert
Technical
Specifications
| PiX 1012 | PiX 1012HD (Non Glass TFT) | |
| Detector Technology | a-Si | Glass Free TFT: a-Si |
| Scintillator | CsI /DRZ-Plus / DRZ- Fine | CsI / Gadox |
| Pixel Pitch (µm) | 125 | 99 |
| Edge Space (mm) | 8 | 3 (Two Sides) |
| Pixel Matrix | 2000×2400 | 2424 x 3036 |
| Active Area (mm) | 250×300 | 249.87 x 300.56 |
| Spatial Resolution (lp/mm) | 4 | 5 |
| AD Conversion (bit) | 16 | 16 |
| AD Conversion (bit) | 16 | 16 |
| Maximum X-Ray Exposure (sec) | 180 | 180 |
| Data Interface | Wired/Wireless | Wired/Wireless |
| X-Ray Energy Range | 40 kV – 370 kV | 40 kV – 450 kV |
| Ingress Protection | IP65 | IP67 |
| Dimensions (mm) | 340x291x18 | 333.3×282.5×15 |
| Weight (Kg/Lbs) -w/out armor case | 2.1kg /4.62lbs | 1.59kg /3.50lbs |
| Power Dissipation (W) | 17 | DC24V |
| Operating Temperature (C/F) | 10°C – 40°C / 50°F – 104°F | 10°C – 50°C / 50°F – 122°F |
| Storage/Transport Temperature (C/F) | -20°C to 55°C / -4°F – 131°F | -20°C to 55°C / -4°F – 122°F |
| Operating Humidity (% RH) | 20 – 90 | 30 – 85 |
| Storage & Transport Humidity (% RH) | 10 – 95 | 10 – 95 |
| Battery Life (Capture/Standby) | 4 hours / 6 hours | 6 hours / 8 hours |
