Introducing PiX RavenTM – introducing complete wireless solution for Powerline X-Ray Inspection designed for utility companies and transmission corporations.
Powerline X-ray inspection is costly, difficult and sometimes just dangerous. PiX Raven is a highly advanced powerline mounting X-Ray solution designed to upgrade and introduce digital X-Ray imaging to the powerline industry.


Along with it, our software loaded on a rugged tablet captures accurate and actionable images! With a single click, you can trigger the X-Ray, capture an image and wirelessly transfer it on to the tablet/laptop in a matter of seconds. When you launch the software, the detector and x-ray are auto-connected.

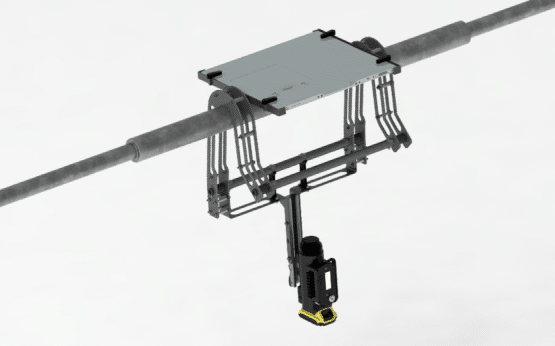

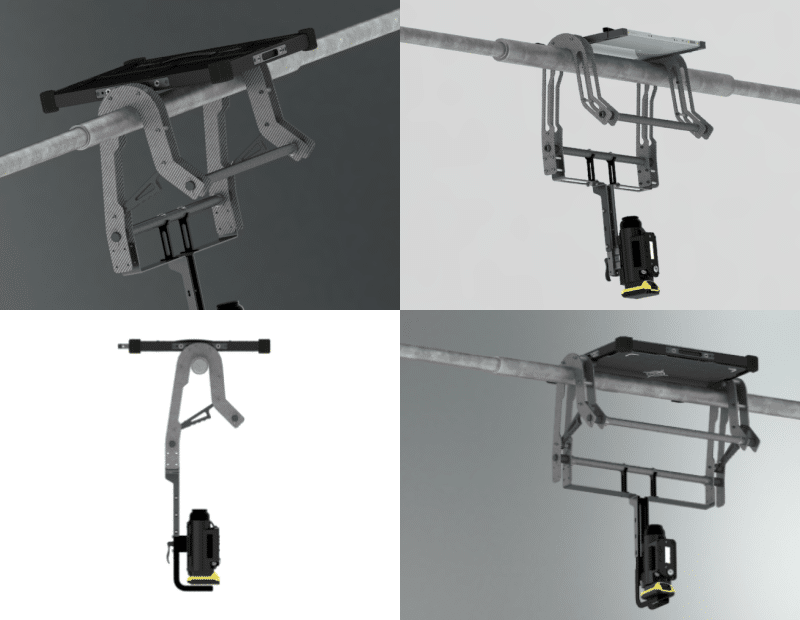

PiX Raven includes a state-of-the art digital detector inside our IP68 rated protective armor (Rhino), portable X-Ray, Air Pi Trigger Box all mounted on newly upgraded mount for inspecting sleeves and connectors. Our carbon fiber frame mounts on the powerline and is one of the safest methods to safely inspect conductorsleeves on power lines.
Along with it, our software loaded on a rugged tablet captures accurate and actionable images! With a single click, you can trigger the X-Ray, capture an image and wirelessly transfer it on to the tablet/laptop in a matter of seconds. When you launch the software, the detector and x-ray are auto-connected.
Just press “Capture” & image is acquired within a few seconds & wirelessly transferred on the tablet (or laptop)
for immediate review and analysis.

Inspect power lines efficiently & safely with PiX RavenTM

Auto Lock mechanism holds the Raven in place allowing no movement or blur during usage.

With a single click, unlock & move the Raven to the next spot for inspection.

Wireless transmission to touch screen tablets and laptops using Pacific NDT Powerline Software.

Viewing Tools – Rotate, Flip, Move, Zoom, Magnify, Best Fit, View 1:1, Adjust Contrast, W/L etc.

Measurement Tools – Add Text, Measure Distance, Calibration, Measure Angle, Draw Line, Circle, Rectangle, Measure ROI, Crop, Mask etc.

Image Processing Filters – Sharpen, Edge, Psuedocolor, Dual Energy, Histogram Equalization, Anonymize Data, Emboss, Profiler, Report Writer, Auto-measurements etc.

Advance Algorithms: optimized for Powerline, Pipeline, Concrete, Security & Aerospace.

Fast Inspection of interior conductor sleeves

Cost & Time Savings

Immediate Data Sharing

Push to Cloud option
PI Software Features
Zoom, Pan, Rotate, Flip | Image Storage, Import/Export, Diconde |
Text, Shapes, Distances, Areas | Line Profile, Duplex Wire |
Invert, Window/Level, Histogram | Pipe wall Thickness Measurement |
Crop, Mask, ROI, Overlay | ROI Statistics, SNR, CNR |
Best fit, 1:1 Display, Split Display | Image Processing, Flitters, Embossing, False Colors |
Undo, Redo, Reset, Presentation State | Pipeline, Trigger, Plugins |
Configurable UI, Multi-Language | Reporting |
Info for Part and Study, Overlay | User Loggins, Roles |
